Commercial AC Series
A slim floor-standing post that charges two cars at once — two outlets, two screens and a payment option, built for car parks that are open to the public.
- Two cars at once
- 2 × 22 kWTwo cars at once
- One screen per outlet
- 2 × LCDOne screen per outlet
- Public-site rated
- IP55 · IK10Public-site rated
- Card payment option
- PayterCard payment option
Models
- MZ-CAC7-2
- MZ-CAC11-2
- MZ-CAC22-2
Certified to CE and CB, tested by TÜV and SGS; certificate copies for the exact model on request.
Overview
The Commercial AC Series is a slim pedestal with two charging outlets. It is designed for car parks where the operator wants to charge two bays from one foundation and one cable run.
Each outlet has its own screen, and both can charge at the same time. With the optional Payter terminal, drivers pay with a bank card; with RFID or the app, the operator can run membership or staff charging.
The housing is rated IP55 and IK10 for open public sites, and the rear cover comes off for maintenance without removing the post.
Highlights
- Two outlets on one foundation — half the civil work per bay
- Contactless card payment with a Payter terminal (option)
- MID-certified energy meter on request
- Removable rear cover for fast maintenance
Best for: Hotels, offices, retail car parks and municipalities that charge two bays from one post
Specifications
IEC versions
Per-outlet power · both outlets can charge at the same time
| Model | MZ-CAC7-2 | MZ-CAC11-2 | MZ-CAC22-2 |
|---|---|---|---|
| Power per outlet | 7.4 kW | 11 kW | 22 kW |
| Phases | 1-phase | 3-phase | 3-phase |
| Current per outlet | 32 A | 16 A | 32 A |
| Total site power | 14.8 kW | 22 kW | 44 kW |
Common specifications
- Input
- 1P+N+PE 220–240 V or 3P+N+PE 380–415 V, 50/60 Hz
- Outlets
- 2 × Type 2 socket (-S) or tethered cable (-T)
- Display
- 2 × LCD
- Ingress / impact protection
- IP55 · IK10
- Backend protocol
- OCPP 1.6J · OCPP 2.0.1
- Authentication
- RFID, app QR code; Payter terminal optional
- Operating temperature
- −25 °C to +55 °C
- Dimensions (W × D × H)
- 260 × 260 × 1140 mm
Figures may change with product updates — the datasheet sent with your quotation is binding.
Engineering
- 01
Two bays, one post
One foundation and one cable run serve two parking spaces.
- 02
Pay as you charge
A Payter terminal accepts bank cards, so guests and visitors can charge without an app.
- 03
Built for public sites
IK10 impact protection and a sealed IP55 housing for open car parks.
Installation
- Floor mounting on a concrete base with anchor bolts
- Cable entry from below
- Group load management across several posts
Options
- Payter card terminal
- MID-certified meter
- 4G modem
- Custom colour and branding panel

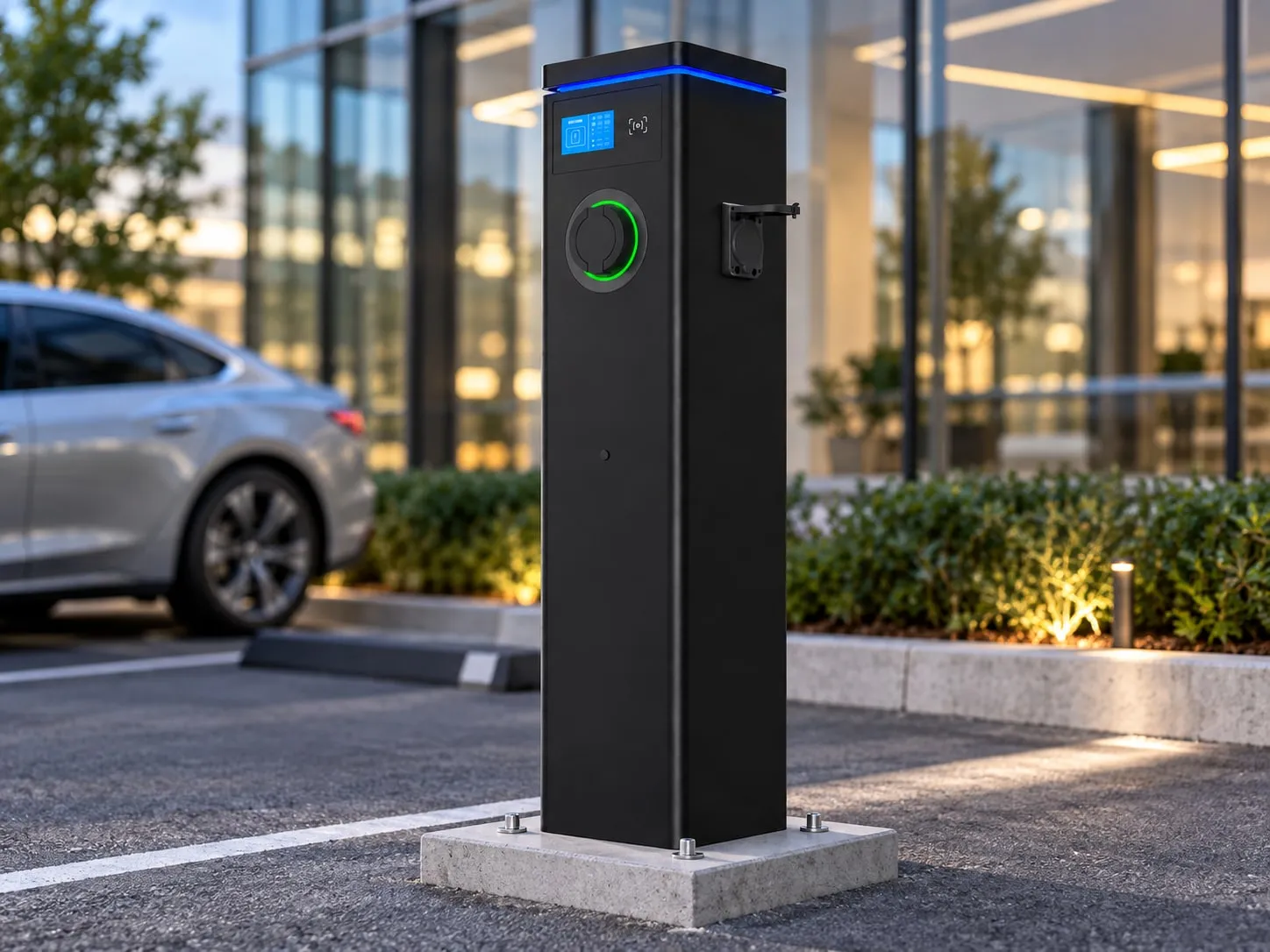

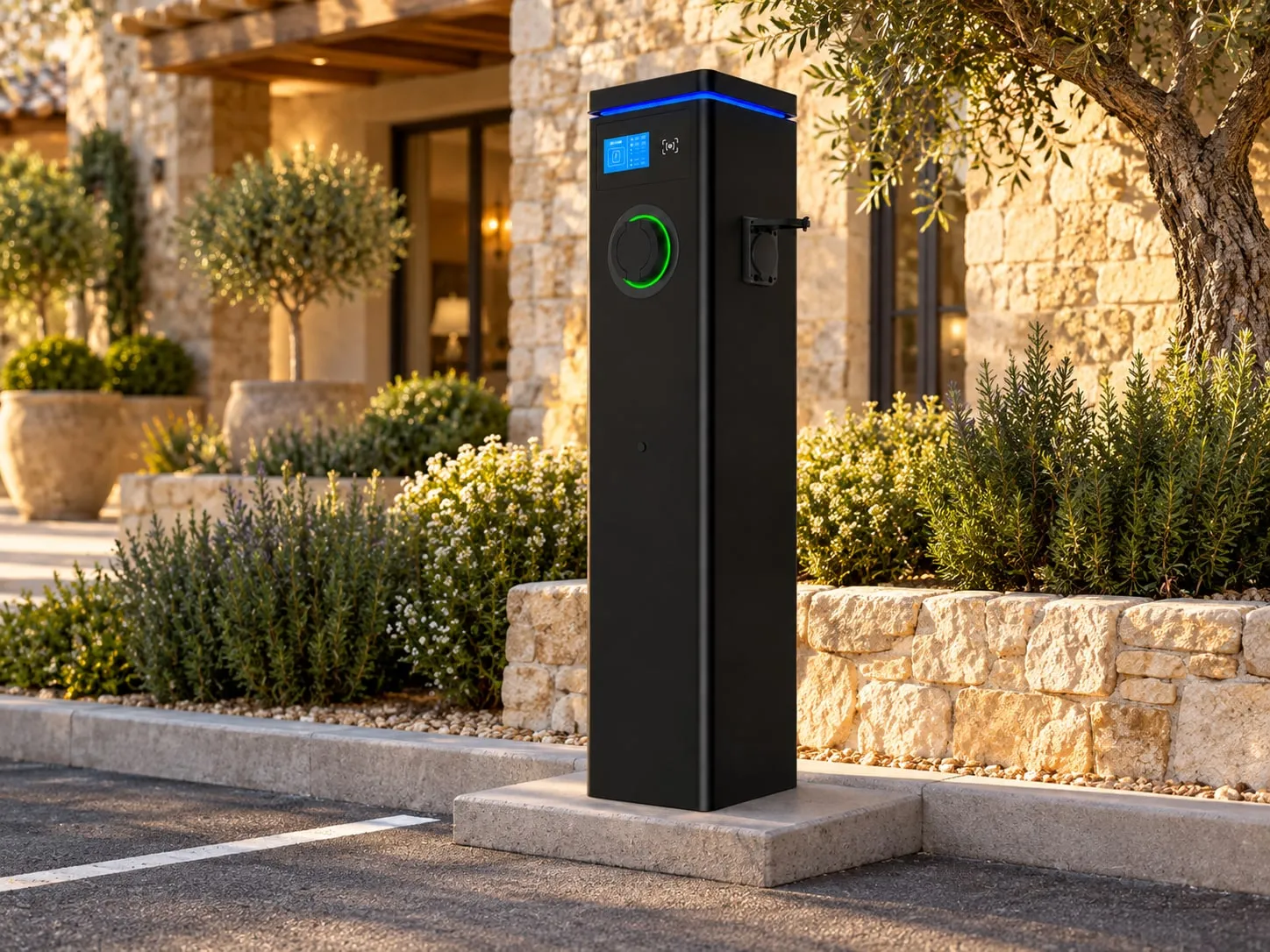

Where it works best
FAQ
Can both outlets charge at 22 kW?
Yes, if the supply allows 44 kW. With a smaller supply, load management shares the available power.
Can drivers pay by bank card?
With the optional Payter terminal, yes — no app or account needed.
What foundation is needed?
A concrete base with anchor bolts and a cable duct from below; drawings are supplied with the order.
