EV Adapters
AC charging adapters between Type 1, Type 2 and GB/T — so imported cars can use local chargers, rated 32 A with an IP55 housing.
- AC 220–240 V
- 32 AAC 220–240 V
- T2↔T1, T2↔GB/T
- 4 typesT2↔T1, T2↔GB/T
- Mating cycles
- > 5,000Mating cycles
- Housing
- IP55Housing
Models
- MZ-ADP-T2T1
- MZ-ADP-T1T2
- MZ-ADP-T2GB
- MZ-ADP-GBT2
Certified to CE and CB, tested by TÜV and SGS; certificate copies for the exact model on request.
Overview

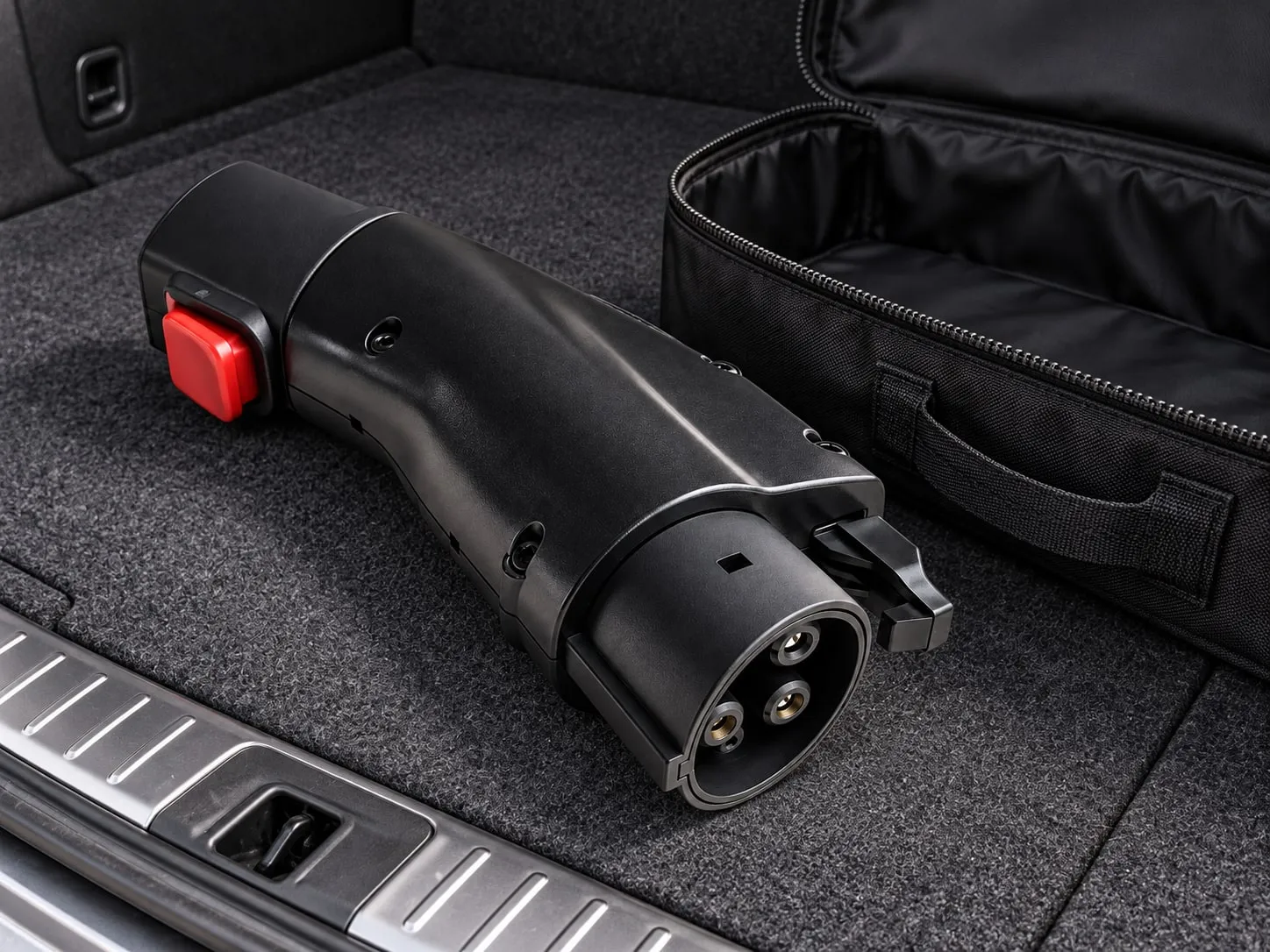

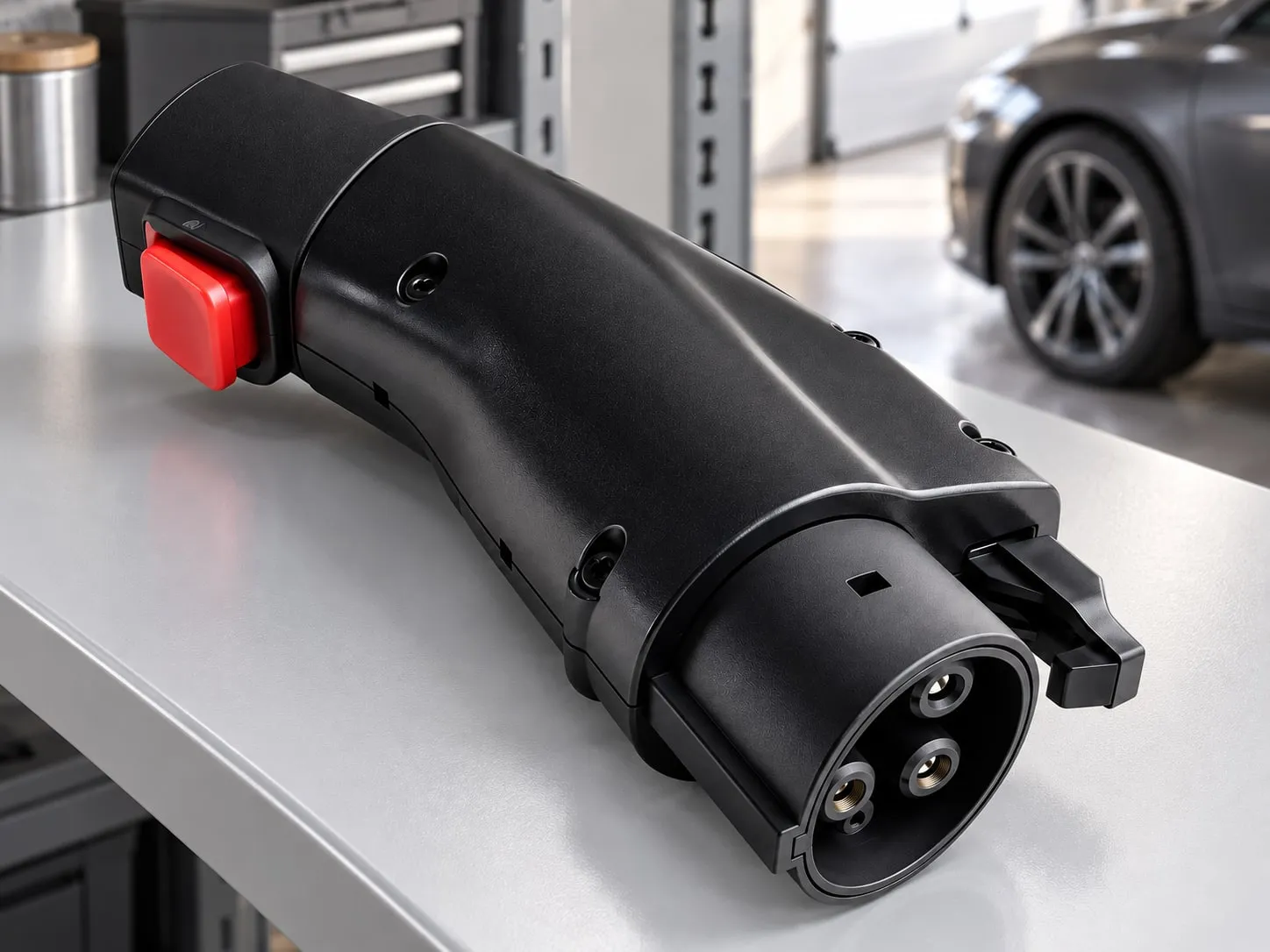

MOLZEX AC adapters connect cars and chargers with different connector standards: Type 2 to Type 1, Type 1 to Type 2, Type 2 to GB/T and GB/T to Type 2. They are rated 32 A and built with silver-plated terminals in a flame-retardant housing.
Highlights
- Lets imported cars charge on local AC chargers
- Silver-plated copper alloy terminals
- Flame-retardant PP+PC housing
- Compact, with release button
Best for: Car importers, dealers and drivers of imported vehicles
Specifications
Models
AC charging only
| Model | MZ-ADP-T2T1 | MZ-ADP-T1T2 | MZ-ADP-T2GB | MZ-ADP-GBT2 |
|---|---|---|---|---|
| From (charger side) | Type 2 | Type 1 | Type 2 | GB/T |
| To (car side) | Type 1 | Type 2 | GB/T | Type 2 |
Common specifications
- Rated current
- 32 A
- Voltage
- AC 220–240 V, 1P+N+PE
- Housing
- PP + PC, UL94 V-0
- Terminals
- Silver-plated copper alloy
- Mating cycles
- > 5,000
- Ingress protection
- IP55
- Standard
- IEC 62196-2
Figures may change with product updates — the datasheet sent with your quotation is binding.
Engineering
- 01
For imported cars
A GB/T or Type 1 car can charge from Type 2 chargers and the other way round.
- 02
Robust contacts
Silver-plated terminals keep resistance and heat low.
Options
- Private-label packaging
Where it works best
FAQ
Do the adapters work for DC fast charging?
No. These adapters are for AC charging only.
Get a quote for the EV Adapters
Tell us the market, power level and quantity. An engineer replies with a model list and price.
