CVD Series
A compact DC charger from 20 to 60 kW that mounts on a wall or a pedestal — with one or two CCS connectors for workplaces, retail and depots.
- DC output
- 20–60 kWDC output
- Dual from 40 kW
- 1 or 2 gunsDual from 40 kW
- Two mounting options
- Wall / pedestalTwo mounting options
- Outdoor rated
- IP54 · IK10Outdoor rated
Models
- MZ-CVD20
- MZ-CVD30
- MZ-CVD40
- MZ-CVD40-2
- MZ-CVD60-2
Certified to CE and CB, tested by TÜV and SGS; certificate copies for the exact model on request.
Overview
The CVD Series is the compact DC workhorse of the range. From 20 to 60 kW, it mounts on a wall where space is short or on its own pedestal in open car parks.
Single-gun models cover 20, 30 and 40 kW; dual-gun models at 40 and 60 kW let two vehicles charge at once. A 7-inch touchscreen, RFID and QR-code start make it ready for public use.
Highlights
- Wall or pedestal mounting from the same unit
- Dual-gun models from 40 kW
- Efficiency ≥ 95.2 % at full load
- Sprayed stainless-steel housing
Best for: Workplaces, supermarkets, dealerships and small fleet depots
Specifications
IEC versions
CCS2 standard; CCS1, CHAdeMO and GB/T on request
| Model | MZ-CVD20 | MZ-CVD30 | MZ-CVD40 | MZ-CVD40-2 | MZ-CVD60-2 |
|---|---|---|---|---|---|
| Max. output power | 20 kW | 30 kW | 40 kW | 40 kW | 60 kW |
| Connectors | 1 × CCS2 | 1 × CCS2 | 1 × CCS2 | 2 × CCS2 | 2 × CCS2 |
| Max. output current | 66.5 A | 100 A | 133 A | 133 A | 200 A |
| Input current per phase | 31 A | 47 A | 62 A | 62 A | 93 A |
Common specifications
- Input
- 3P+N+PE 230/400 V, 50/60 Hz
- Charging mode
- Mode 4 (DC)
- Efficiency
- ≥ 95 % at full load
- Voltage / current accuracy
- < ±0.5 % / < ±1 %
- Metering accuracy
- Class 0.5
- Interface
- 7" colour touchscreen, LED status light, emergency stop
- Authentication
- RFID · QR code · POS terminal (option)
- Backend protocol
- OCPP 1.6J · OCPP 2.0.1
- Connectivity
- Ethernet; 4G and Wi-Fi optional
- Protections
- Over/under-voltage, overload, short circuit, over-temperature, surge, insulation monitoring
- Cooling
- Forced air
- Output voltage
- 200–1000 V DC
- Ingress / impact protection
- IP54 · IK10
- Housing
- Sprayed stainless steel
- Operating temperature
- −25 °C to +55 °C
- Dimensions (W × D × H)
- 690 × 300 × 760 mm (single) / 960 mm (dual)
Figures may change with product updates — the datasheet sent with your quotation is binding.
Engineering
- 01
One unit, two mountings
Hang it on a wall or put it on its pedestal — same charger, same spare parts.
- 02
Two cars from 40 kW
Dual-gun models share power between two connectors.
- 03
Efficient
≥ 95.2 % efficiency keeps energy losses and heat low.
Installation
- Wall bracket or pedestal on a concrete base
- 400 V three-phase supply
- Cable entry from below
Options
- CCS1 / CHAdeMO / GB/T
- 4G and Wi-Fi
- POS terminal
- C4 anti-corrosion coating for coastal sites

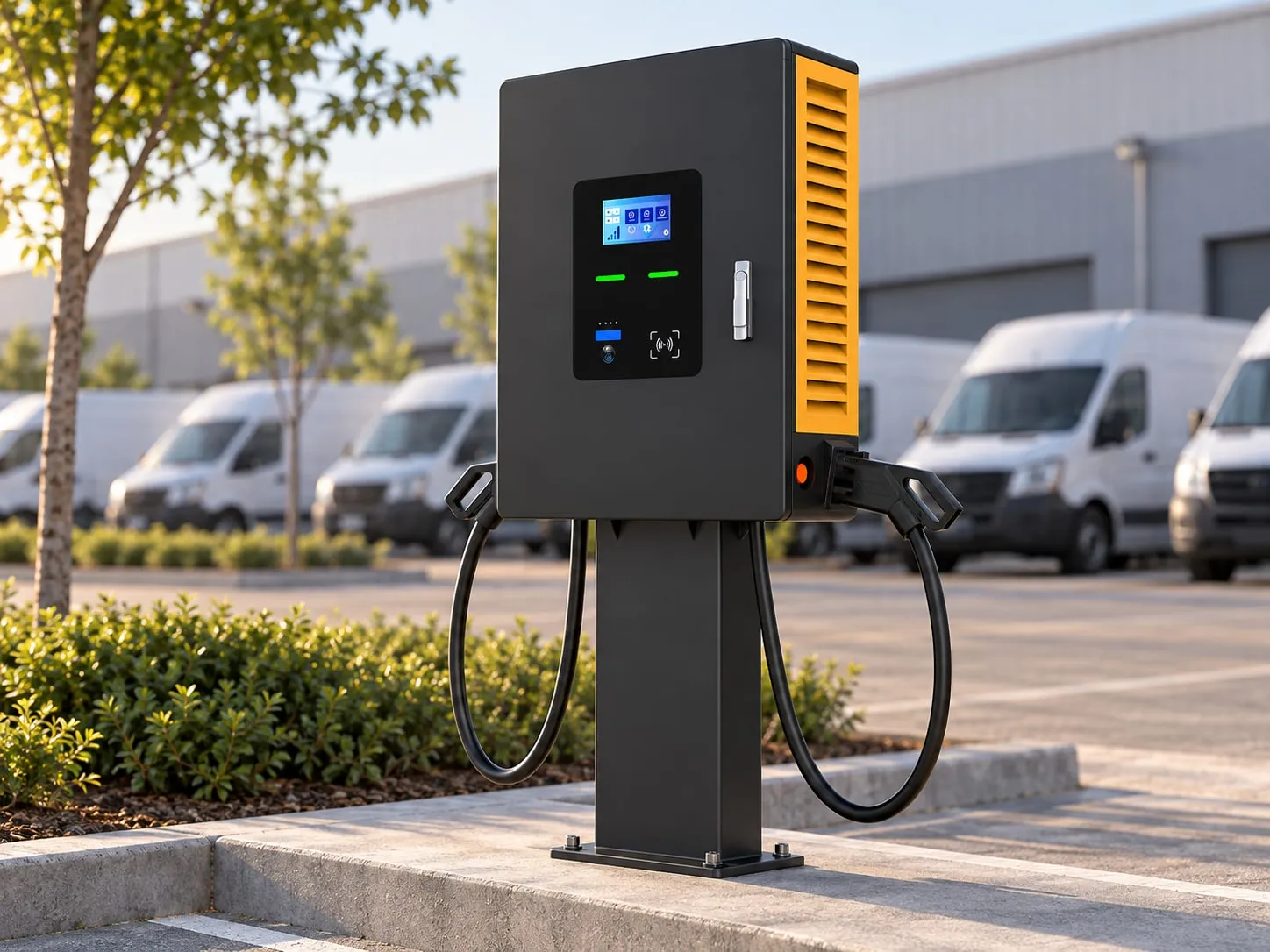

Where it works best
FAQ
Which model charges two cars?
MZ-CVD40-2 and MZ-CVD60-2 have two CCS2 connectors that share the output.
Can it be installed by the sea?
Yes, with the optional C4 anti-corrosion coating.
