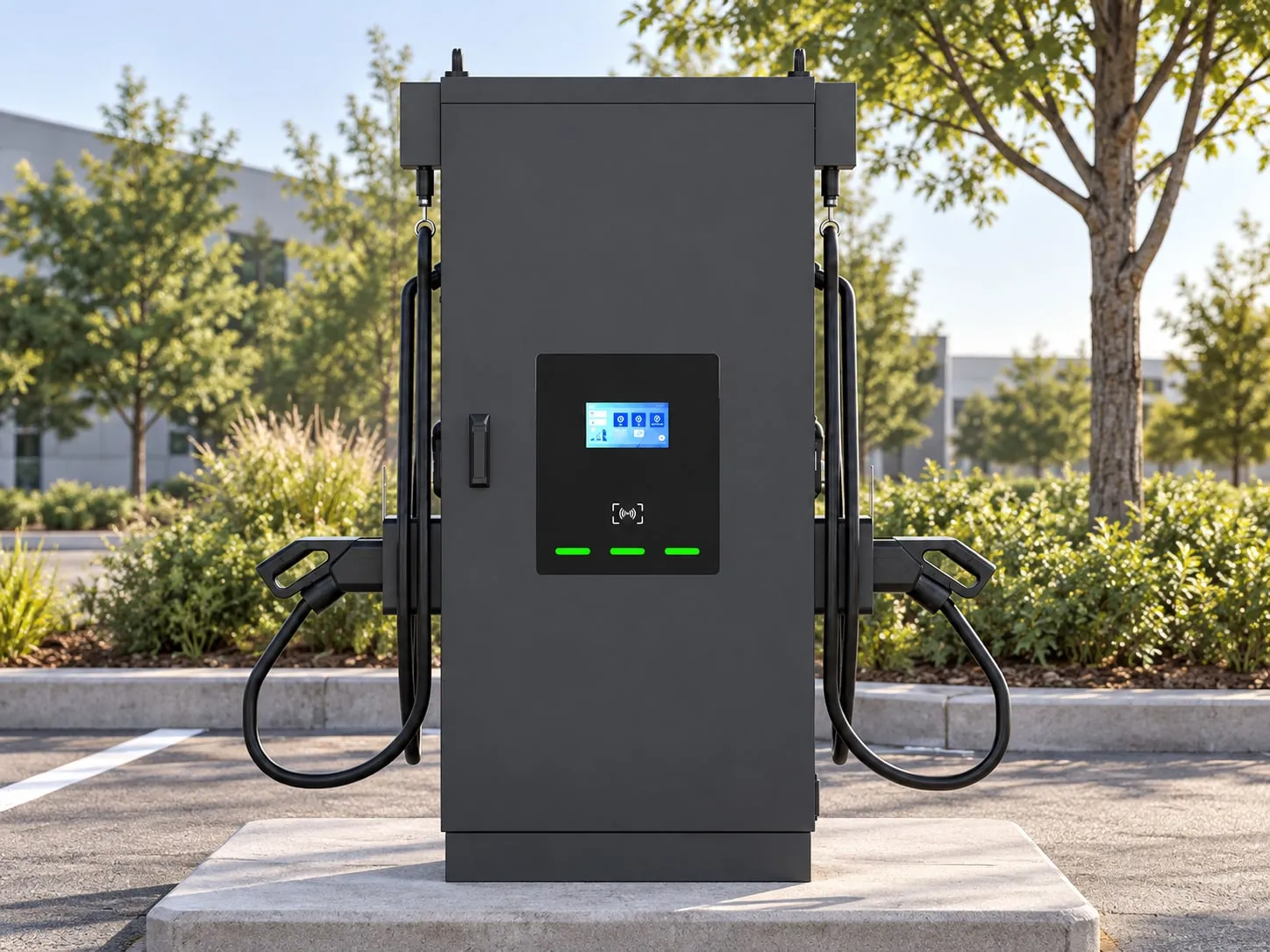

MVD Series
A floor-standing DC cabinet with two connectors and dynamic power sharing, from 60 to 180 kW — sized for fleet depots, car parks and urban charging hubs.
- Dual-gun DC
- 60–180 kWDual-gun DC
- Automatic between guns
- Power sharingAutomatic between guns
- Custom lengths
- 6 m cablesCustom lengths
- Outdoor rated
- IP54 · IK10Outdoor rated
Models
- MZ-MVD60-2
- MZ-MVD80-2
- MZ-MVD120-2
- MZ-MVD160-2
- MZ-MVD180-2
Certified to CE and CB, tested by TÜV and SGS; certificate copies for the exact model on request.
Overview
The MVD Series is a mid-power DC cabinet for sites with steady traffic. Two connectors share a pool of power modules: a single car can use everything, and two cars split it automatically.
Power starts at 60 kW and goes up to 180 kW in the same cabinet, so operators can begin small and add modules as utilisation grows.
Highlights
- Two connectors share one power pool automatically
- Expandable power modules inside one cabinet
- Optional 21" advertising screen
- Optional 22 kW AC outlet for a third vehicle
Best for: Fleet depots, taxi and ride-hailing hubs, urban car parks
Specifications
IEC versions
Two connectors with dynamic power sharing
| Model | MZ-MVD60-2 | MZ-MVD80-2 | MZ-MVD120-2 | MZ-MVD160-2 | MZ-MVD180-2 |
|---|---|---|---|---|---|
| Max. output power | 60 kW | 80 kW | 120 kW | 160 kW | 180 kW |
| Input current per phase | 93 A | 124 A | 186 A | 248 A | 279 A |
| Two cars, typical split | 30 + 30 kW | 40 + 40 kW | 60 + 60 kW | 80 + 80 kW | 90 + 90 kW |
Common specifications
- Input
- 3P+N+PE 400 V, 50/60 Hz
- Charging mode
- Mode 4 (DC)
- Efficiency
- ≥ 95 % at full load
- Voltage / current accuracy
- < ±0.5 % / < ±1 %
- Metering accuracy
- Class 0.5
- Interface
- 7" colour touchscreen, LED status light, emergency stop
- Authentication
- RFID · QR code · POS terminal (option)
- Backend protocol
- OCPP 1.6J · OCPP 2.0.1
- Connectivity
- Ethernet; 4G and Wi-Fi optional
- Protections
- Over/under-voltage, overload, short circuit, over-temperature, surge, insulation monitoring
- Cooling
- Forced air
- Output voltage
- 150–1000 V DC
- Max. output current
- CCS2 200 A · CHAdeMO 150 A
- Connectors
- CCS2 + CCS2 or CCS2 + CHAdeMO
- Cable length
- 6 m (custom available)
- Ingress / impact protection
- IP54 · IK10
- Operating temperature
- −20 °C to +55 °C
Figures may change with product updates — the datasheet sent with your quotation is binding.
Engineering
- 01
Dynamic power sharing
One car can take the full power; when a second car connects, the modules are split by demand.
- 02
Grows with the site
Start at 60 kW and add power modules up to 180 kW in the same cabinet.
- 03
Revenue options
A 21" advertising screen and POS payment turn the charger into a sales point.
Installation
- Concrete foundation with cable duct
- 400 V three-phase supply sized for the cabinet rating
- Keep 600 mm service clearance at the front and back
Options
- 21" advertising screen
- 22 kW AC outlet
- Type B RCBO
- C4 anti-corrosion coating
- POS terminal
Where it works best
FAQ
Can one car use the full 180 kW?
Yes, if the car accepts it. With two cars connected, the power is shared.
Can I upgrade from 60 kW later?
Yes. Additional power modules can be fitted in the same cabinet; the supply must be sized for the final rating.
