PEV Series
A Mode 2 portable charger with an LCD control box — plug into a household or industrial socket and charge anywhere, from 3.7 kW to 22 kW.
- 1-phase or 3-phase
- 3.7–22 kW1-phase or 3-phase
- Adjustable current
- 6–32 AAdjustable current
- Control box display
- LCDControl box display
- Rain and dust protected
- IP65Rain and dust protected
Models
- MZ-PEV3
- MZ-PEV7
- MZ-PEV11
- MZ-PEV22
Certified to CE and CB, tested by TÜV and SGS; certificate copies for the exact model on request.
Overview
The PEV Series packs a smart charger into a cable. The control box carries the protection electronics and an LCD, so drivers can see the charging current and set a start time.
Single-phase models plug into household or blue CEE sockets; three-phase models take red CEE industrial plugs for up to 22 kW. Plug adapters let one charger work at home, at a holiday house and at a workshop.
Highlights
- Adjustable current to match the socket
- Scheduled charging for cheap night tariffs
- Interchangeable plug adapters
- Carry bag included
Best for: Drivers who travel, holiday homes and backup charging for fleets
Specifications
IEC versions
Current adjustable in steps on the control box
| Model | MZ-PEV3 | MZ-PEV7 | MZ-PEV11 | MZ-PEV22 |
|---|---|---|---|---|
| Max. power | 3.7 kW | 7.4 kW | 11 kW | 22 kW |
| Phases | 1-phase | 1-phase | 3-phase | 3-phase |
| Current range | 6–16 A | 6–32 A | 6–16 A | 6–32 A |
| Typical plug | Schuko / UK | CEE blue 32 A | CEE red 16 A | CEE red 32 A |
Common specifications
- Charging mode
- Mode 2 (IEC 61851)
- Connector
- Type 2 (IEC 62196-2)
- Input cable
- 0.8 m with plug
- Charging cable
- 4 m
- Fault protection
- 30 mA Type A + 6 mA DC
- Display
- LCD on the control box
- Ingress protection
- IP65
- Operating temperature
- −25 °C to +55 °C
Figures may change with product updates — the datasheet sent with your quotation is binding.
Engineering
- 01
Matches any socket
Turn the current down for weak household sockets, up for industrial outlets.
- 02
Charge at night
Set a start time to use off-peak tariffs.
- 03
Travel-ready

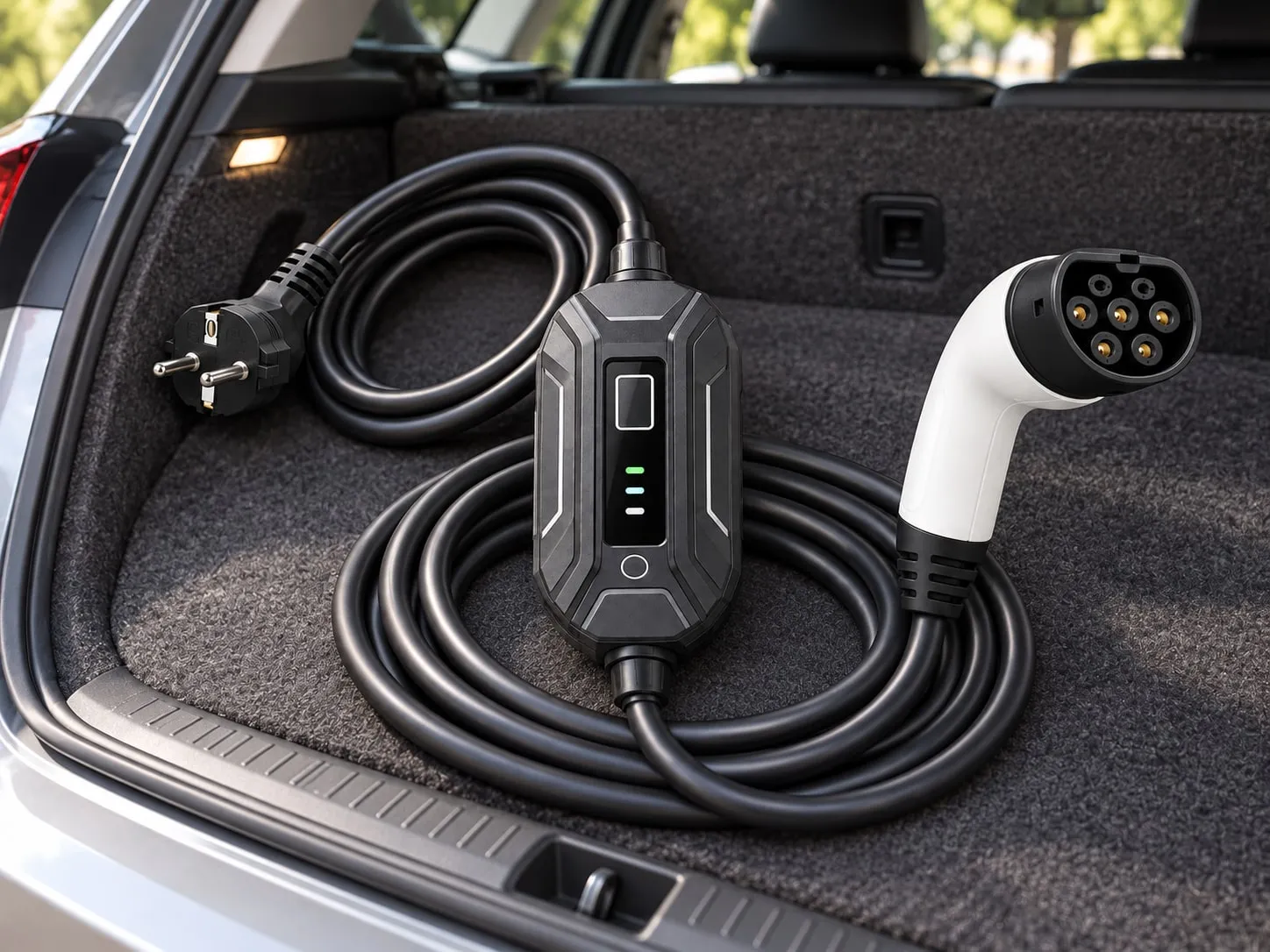

Plug adapters and a carry bag keep everything together in the boot.
Installation
- No installation — plug into a suitable earthed socket
- Do not use extension reels
Options
- Plug adapters for local sockets
- App control (option)
- Custom cable length
Where it works best
FAQ
Can I use it on a normal household socket?
Yes, with the 16 A model at a reduced current. Long sessions at full current need a dedicated, earthed socket.
Is a portable charger as safe as a wallbox?
Yes when used correctly: the control box has the same RCD and over-temperature protection.
