PGO Series
A portable charger with the control box built into the handle — no box hanging on the cable, just a plug, a cable and a smart Type 2 gun.
- 230 V, 13 A
- Up to 3 kW230 V, 13 A
- Adjustable
- 6–13 AAdjustable
- No control box on the cable
- In-gunNo control box on the cable
- Rain and dust protected
- IP65Rain and dust protected
Models
- MZ-PGO3
Certified to CE and CB, tested by TÜV and SGS; certificate copies for the exact model on request.
Overview
The PGO Series puts the protection and control electronics inside the gun handle. There is no box on the cable, so the charger is lighter, coils up more easily and puts no strain on the socket.

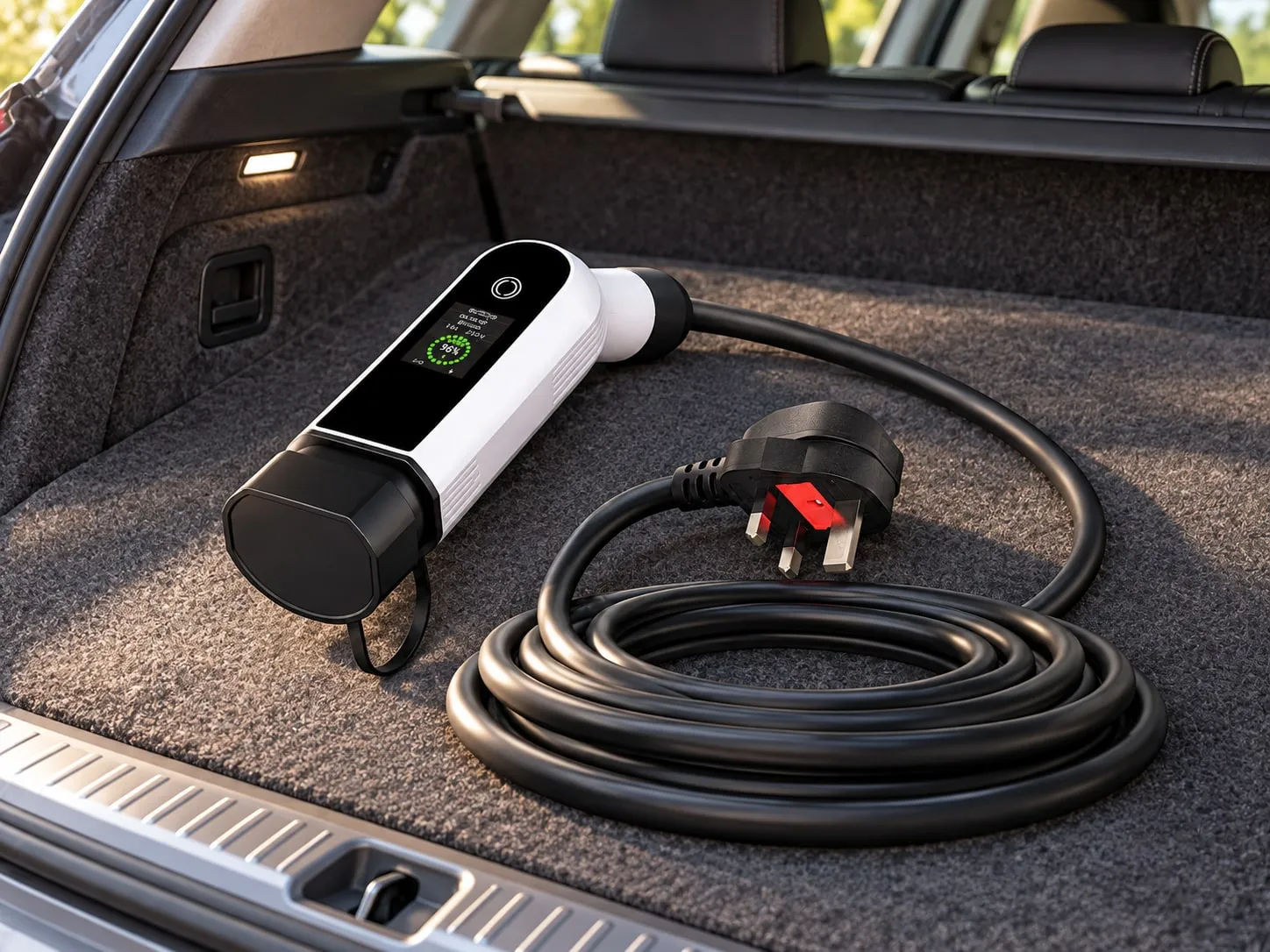

It charges at up to 3 kW from a household socket, which is enough for overnight top-ups or as a backup charger kept in the boot.
Highlights
- Control electronics and display in the gun handle
- Light and compact — fits under the boot floor
- Plug to local standard: UK, Schuko or others
- Current set on the handle
Best for: Drivers who want a light emergency or travel charger
Specifications
IEC version
Plug type to order: UK BS 1363, Schuko or other national plugs
| Model | MZ-PGO3 |
|---|---|
| Max. power | up to 3 kW (13 A UK plug) |
| Current settings | 6 / 8 / 10 / 13 A |
| Weight | On request |
Common specifications
- Charging mode
- Mode 2
- Input
- 1-phase 220–240 V
- Connector
- Type 2
- Cable length
- 5 m
- Fault protection
- 30 mA Type A + 6 mA DC
- Protections
- Over-temperature at plug and gun, over-current, earth fault
- Ingress protection
- IP65
- Operating temperature
- −25 °C to +55 °C
Figures may change with product updates — the datasheet sent with your quotation is binding.
Engineering
- 01
Nothing dangling
Without a separate box, the charger coils up neatly and never hangs on the socket.
- 02
Safe on household sockets
Temperature sensors in the plug and gun lower the current if contacts get hot.
- 03
Always in the car
Small enough to live in the boot for emergencies.
Installation
- No installation — plug into an earthed household socket
Options
- National plug types
- Cable length 5–10 m
Where it works best
FAQ
How fast does it charge?
Up to about 3 kW on a UK 13 A socket — roughly 15–20 km of range per hour for a typical car.
Can it charge every Type 2 car?
Yes, every car with a Type 2 inlet.
