EVA Series
A socket wallbox with a soft, curved shell and a single light bar — designed to look calm on any wall, from private garages to small office car parks.
- 1-phase or 3-phase
- 7.4–22 kW1-phase or 3-phase
- Socket
- Type 2Socket
- Indoor and outdoor
- IP55Indoor and outdoor
- App and card start
- RFIDApp and card start
Models
- MZ-EVA7-S
- MZ-EVA11-S
- MZ-EVA22-S
Certified to CE and CB, tested by TÜV and SGS; certificate copies for the exact model on request.
Overview
The EVA Series is a socket wallbox for buyers who care about how the charger looks on the wall. The curved shell has no buttons; a single light bar shows standby, charging and fault states.
It covers single-phase 7.4 kW and three-phase 11 kW or 22 kW, and adds RFID and OCPP so the same unit can serve a family garage or a small office car park.
Highlights
- Curved, button-free front with one light bar
- Untethered Type 2 socket with dust cover
- RFID and app start for shared parking
- OEM colours and logo printing
Best for: Private homes and small businesses that prefer a socket charger with a clean design
Specifications
IEC versions
Type 2 socket · IP55 · RFID and app start
| Model | MZ-EVA7-S | MZ-EVA11-S | MZ-EVA22-S |
|---|---|---|---|
| Rated power | 7.4 kW | 11 kW | 22 kW |
| Phases | 1-phase | 3-phase | 3-phase |
| Rated current | 32 A | 16 A | 32 A |
Common specifications
- Input
- 1P+N+PE 220–240 V or 3P+N+PE 380–415 V
- Frequency
- 50/60 Hz
- Fault protection
- 30 mA Type A RCD + 6 mA DC leakage detection (North America: CCID 20)
- Protections
- Over/under-voltage, over-current, over-temperature, surge, ground detection
- Backend protocol
- OCPP 1.6J · OCPP 2.0.1
- Connectivity
- Wi-Fi, Bluetooth; 4G and Ethernet optional
- Start modes
- RFID card, mobile app, plug & charge
- Load management
- Dynamic load balancing with a CT clamp; solar-surplus mode
- Operating temperature
- −25 °C to +55 °C
- Ingress protection
- IP55
- Dimensions
- On request
Figures may change with product updates — the datasheet sent with your quotation is binding.
Engineering
- 01
Quiet design
No buttons or screen on the front — one light bar tells the charging state.
- 02
Shared-parking ready
RFID cards separate users; OCPP sends each session to the billing platform.
- 03
Easy to brand
The smooth shell takes a printed logo and custom colour well.
Installation
- Wall or post mounting
- Commissioning by app
Options
- Shuttered socket
- 4G / Ethernet
- Custom colour and logo

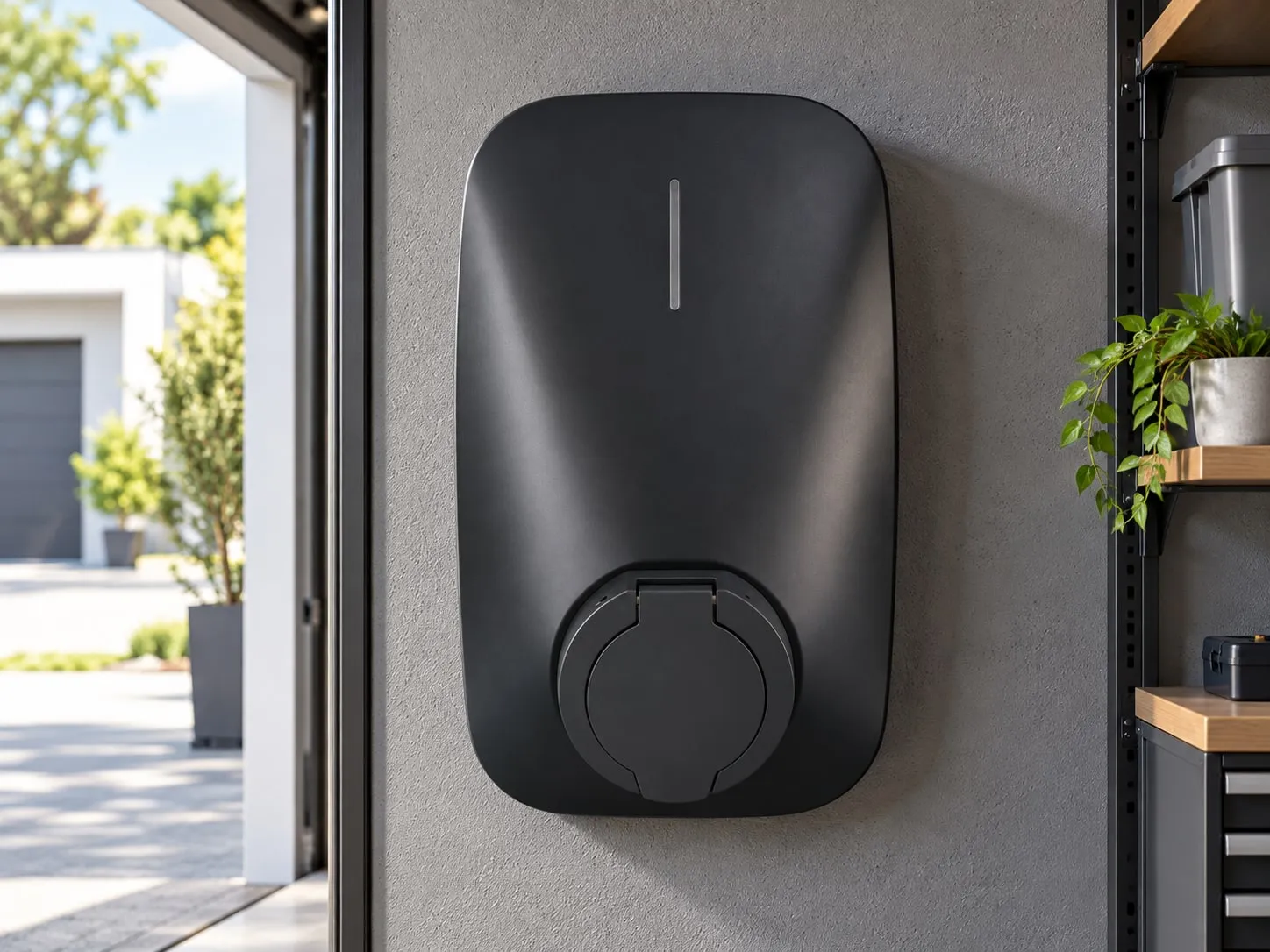

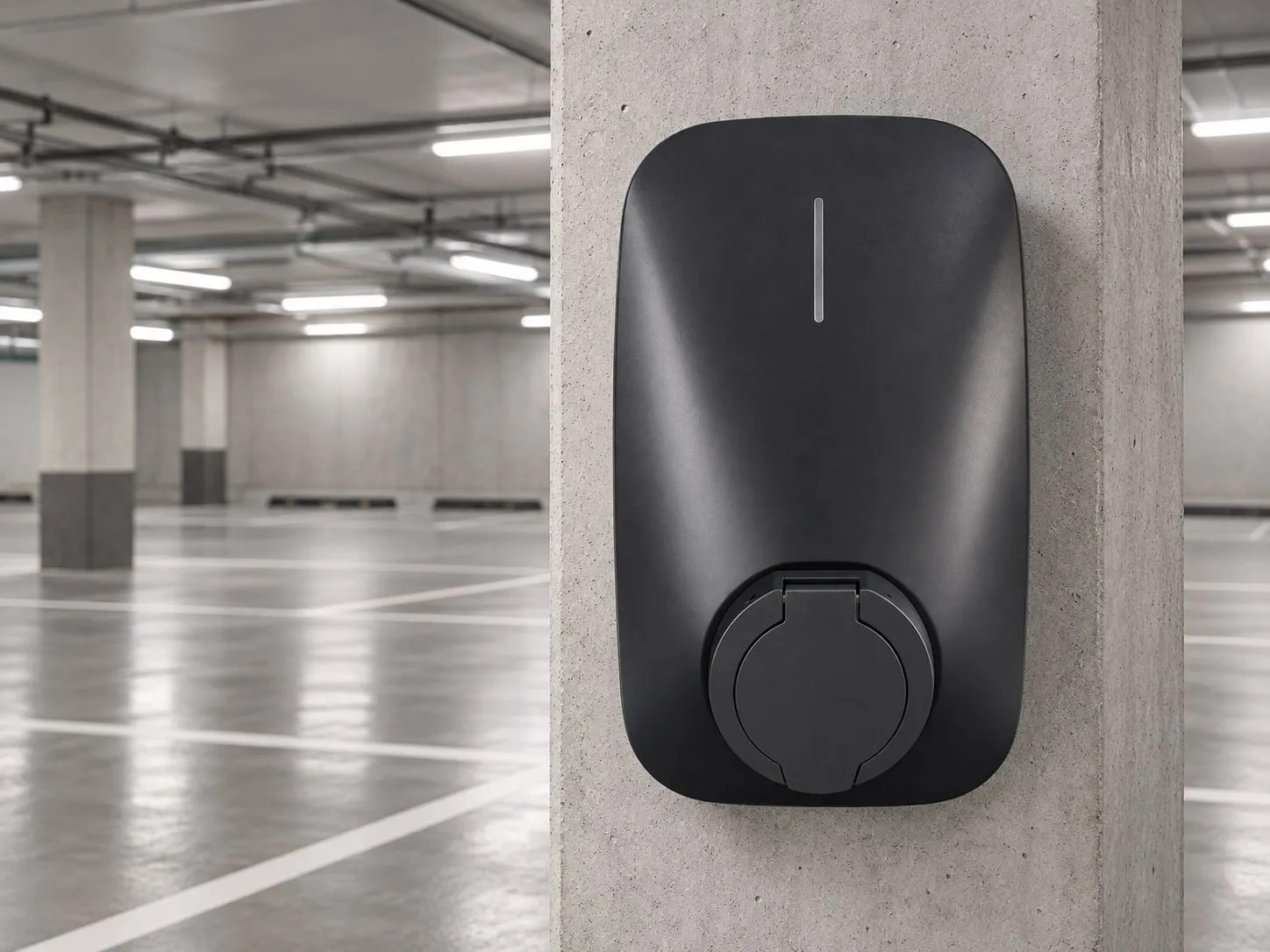

Where it works best
FAQ
Is the EVA Series suitable for outdoor walls?
Yes. IP55 protects it against rain and dust on covered or open walls.
Can several users share one EVA charger?
Yes. Each user gets an RFID card, and OCPP records the sessions for billing.
Get a quote for the EVA Series
Tell us the market, power level and quantity. An engineer replies with a model list and price.
