Mini Series
A compact socket wallbox with a colour screen and a glowing ring around the socket — easy to read at a glance, from 3.7 kW single-phase to 22 kW three-phase.
- 1-phase or 3-phase
- 3.7–22 kW1-phase or 3-phase
- Socket, shutter optional
- Type 2Socket, shutter optional
- Colour screen + light ring
- LCDColour screen + light ring
- Indoor and outdoor
- IP55Indoor and outdoor
Models
- MZ-EVM3-S
- MZ-EVM7-S
- MZ-EVM11-S
- MZ-EVM22-S
Certified to CE and CB, tested by TÜV and SGS; certificate copies for the exact model on request.
Overview
The Mini Series is the smallest MOLZEX wallbox with a screen. It is built for buyers who want the driver to see what is happening — charging power, energy delivered and session time — without opening an app.

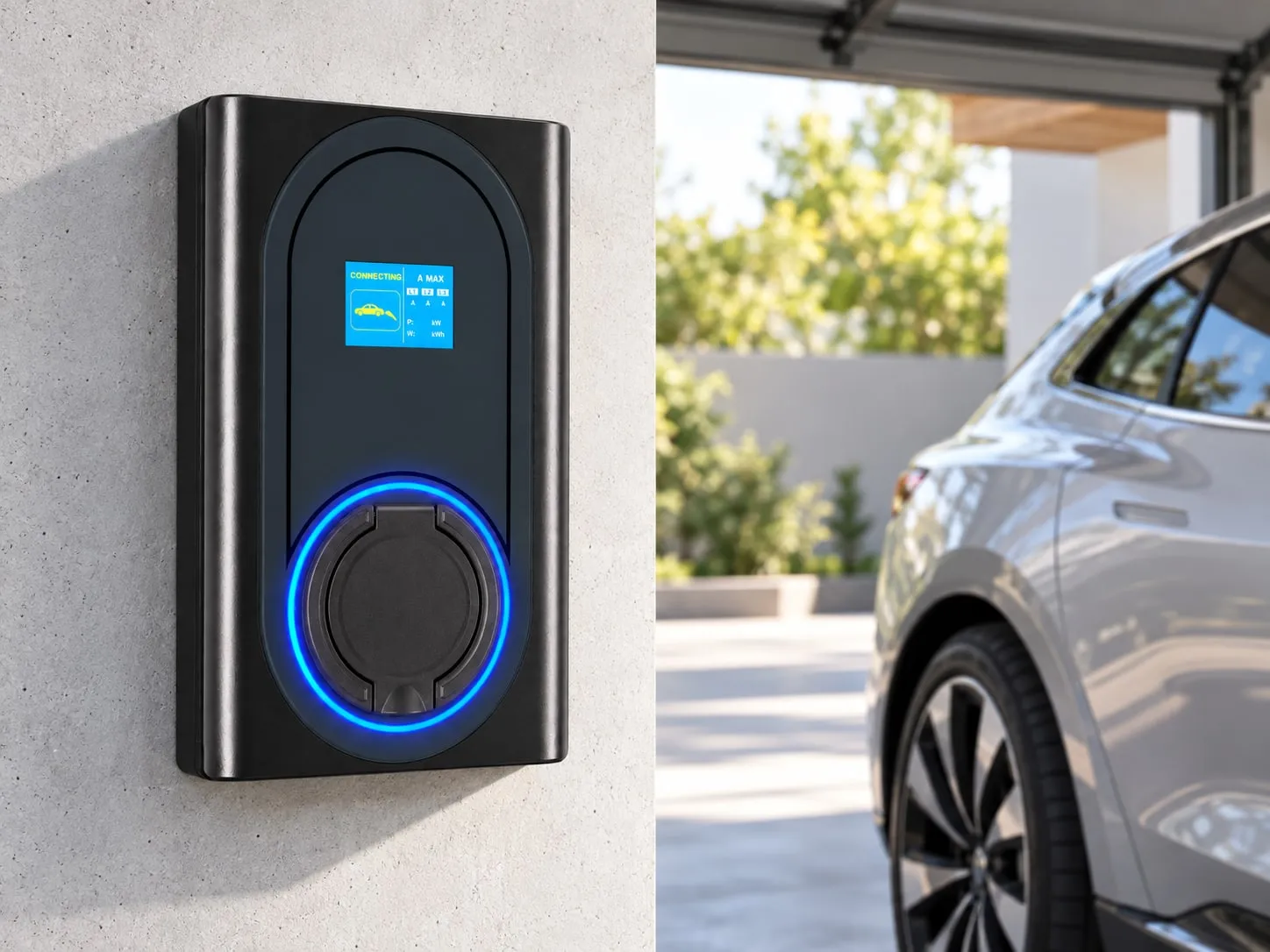

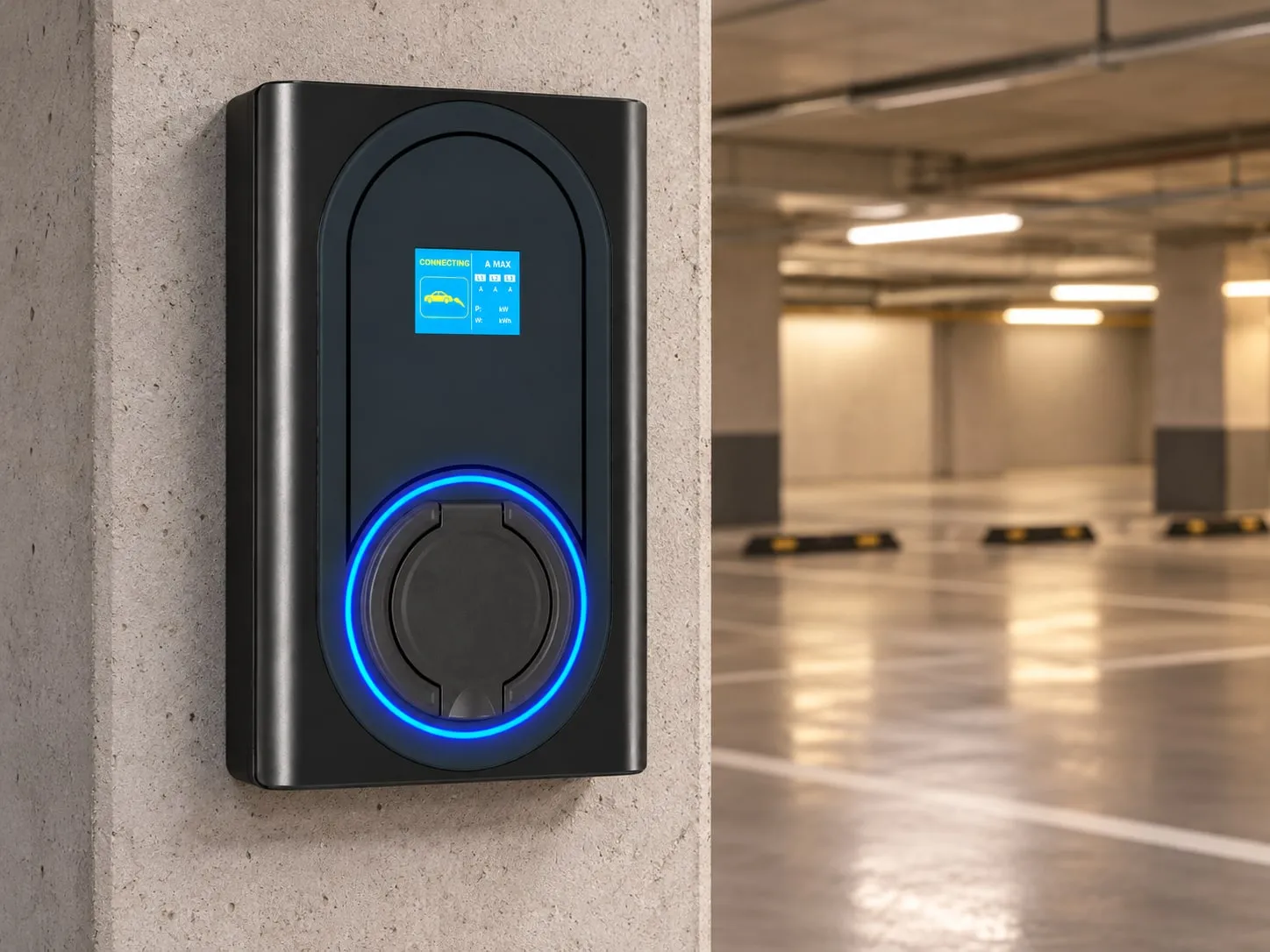

The housing is compact enough for narrow garage walls and pillars in shared car parks. The light ring around the socket is visible from a distance, which helps in apartment garages where many cars charge side by side.
For distributors and installers the series covers every common European supply: single-phase 16 A or 32 A and three-phase 16 A or 32 A, all in the same housing.
Highlights
- Colour LCD shows power, energy and time of each session
- Light ring around the socket shows the charging state from across the garage
- Untethered socket — drivers use their own cable
- Custom housing colour and boot logo for OEM ranges
Best for: Private garages, small businesses and OEM brands that want a compact wallbox with a screen
Specifications
IEC versions (Europe, UK, Asia-Pacific, Middle East)
Type 2 socket (IEC 62196-2) · colour LCD · IP55
| Model | MZ-EVM3-S | MZ-EVM7-S | MZ-EVM11-S | MZ-EVM22-S |
|---|---|---|---|---|
| Rated power | 3.7 kW | 7.4 kW | 11 kW | 22 kW |
| Phases | 1-phase | 1-phase | 3-phase | 3-phase |
| Rated current | 16 A | 32 A | 16 A | 32 A |
| Recommended breaker | 20 A | 36 A | 20 A | 36 A |
Common specifications
- Input
- 1P+N+PE 220–240 V or 3P+N+PE 380–415 V
- Frequency
- 50/60 Hz
- Fault protection
- 30 mA Type A RCD + 6 mA DC leakage detection (North America: CCID 20)
- Protections
- Over/under-voltage, over-current, over-temperature, surge, ground detection
- Backend protocol
- OCPP 1.6J · OCPP 2.0.1
- Connectivity
- Wi-Fi, Bluetooth; 4G and Ethernet optional
- Start modes
- RFID card, mobile app, plug & charge
- Load management
- Dynamic load balancing with a CT clamp; solar-surplus mode
- Operating temperature
- −25 °C to +55 °C
- Ingress protection
- IP55
- Dimensions (W × H × D)
- 200 × 330 × 132 mm
Figures may change with product updates — the datasheet sent with your quotation is binding.
Engineering
- 01
Screen and light ring
The LCD shows live power and energy; the ring turns colour for standby, charging and fault, so the status is clear without opening an app.
- 02
Socket, not cable
A Type 2 socket keeps the wall tidy and lets each driver use their own cable — useful for shared garages.
- 03
Smart when needed
Wi-Fi and Bluetooth come standard; OCPP connects the unit to any charge-point management platform.
Installation
- Wall mounting with the supplied bracket, or on a MOLZEX post
- Cable entry from the bottom or the back
- Commissioning by app: set current limit, Wi-Fi and OCPP address
Options
- Shuttered Type 2 socket
- 4G or Ethernet module
- PEN fault protection for UK installations
- Custom housing colour and logo
Where it works best
FAQ
Does the Mini Series come with a charging cable?
It has a Type 2 socket. Drivers plug in their own Type 2 cable; MOLZEX can supply matching cables in 5 m or custom lengths.
Can it run on a single-phase supply?
Yes. The 3.7 kW and 7.4 kW models are single-phase; 11 kW and 22 kW need a three-phase supply.
Can the screen show our brand?
Yes. Boot logo, screen colours and housing colour can be customised for OEM orders.
Get a quote for the Mini Series
Tell us the market, power level and quantity. An engineer replies with a model list and price.
