EVX Series
A tethered smart wallbox for everyday home charging — the cable stays on the charger, IEC and North American versions share one housing.
- IEC versions
- 7.4–22 kWIEC versions
- North American versions
- 32–48 ANorth American versions
- Tethered, holster on the unit
- 5 m cableTethered, holster on the unit
- Type 3 enclosure (NA)
- IP65Type 3 enclosure (NA)
Models
- MZ-EVX7-T
- MZ-EVX11-T
- MZ-EVX22-T
- MZ-EVX7-T-NA
- MZ-EVX9-T-NA
- MZ-EVX11-T-NA
Certified to CE and CB, tested by TÜV and SGS; certificate copies for the exact model on request.
Overview
The EVX Series is the MOLZEX all-rounder for home charging. The cable stays on the unit, so drivers do not have to carry their own, and the holster keeps the connector clean between sessions.
For Europe and most of Asia-Pacific the IEC versions cover 7.4 kW single-phase up to 22 kW three-phase with a Type 2 cable. For the USA and Canada, the North American versions run on 208–240 V split-phase at 32, 40 or 48 A with an SAE J1772 connector.
Load balancing and solar mode come with the series, so installers can connect it to an existing household supply without upgrading the main breaker in most cases.
Highlights
- Cable and holster on the charger — plug in and go
- Same housing for IEC (Type 2) and North American (J1772) versions
- IP65 for driveways and carports
- Dynamic load balancing protects the main breaker
Best for: Homes, townhouses and installers who want one tethered model for Europe and North America
Specifications
IEC versions (Europe, UK, Asia-Pacific, Middle East)
Input 220–240 V 1P or 380–415 V 3P · Type 2 tethered cable · IP65
| Model | MZ-EVX7-T | MZ-EVX11-T | MZ-EVX22-T |
|---|---|---|---|
| Rated power | 7.4 kW | 11 kW | 22 kW |
| Phases | 1-phase | 3-phase | 3-phase |
| Rated current | 32 A | 16 A | 32 A |
North American versions (USA, Canada)
Input 208–240 V, L1 + L2 + PE · SAE J1772 cable · Type 3 enclosure · CCID 20
| Model | MZ-EVX7-T-NA | MZ-EVX9-T-NA | MZ-EVX11-T-NA |
|---|---|---|---|
| Rated current | 32 A | 40 A | 48 A |
| Power at 240 V | 7.7 kW | 9.6 kW | 11.5 kW |
| Listed design standards | UL 2594, UL 2231 | UL 2594, UL 2231 | UL 2594, UL 2231 |
Common specifications
- Frequency
- 50/60 Hz
- Fault protection
- 30 mA Type A RCD + 6 mA DC leakage detection (North America: CCID 20)
- Protections
- Over/under-voltage, over-current, over-temperature, surge, ground detection
- Backend protocol
- OCPP 1.6J · OCPP 2.0.1
- Connectivity
- Wi-Fi, Bluetooth; 4G and Ethernet optional
- Start modes
- RFID card, mobile app, plug & charge
- Load management
- Dynamic load balancing with a CT clamp; solar-surplus mode
- Operating temperature
- −25 °C to +55 °C
- Cable length
- 5 m (custom lengths on request)
- Dimensions (W × H × D)
- 200 × 330 × 109 mm
Figures may change with product updates — the datasheet sent with your quotation is binding.
Engineering
- 01
One model, two markets
IEC and North American versions use the same housing and app, which keeps stock and training simple for distributors that sell on both sides of the Atlantic.
- 02
Safe on any home supply
A CT clamp measures the household load and lowers the charging current before the main breaker trips.
- 03
Solar-ready
In solar mode the charger follows the PV surplus, so more of the energy comes from the roof.
Installation
- Wall mounting; post mounting with a MOLZEX stand
- Bottom or rear cable entry
- Set current limit and load balancing in the app during commissioning
Options
- 4G or Ethernet module
- LCD display
- PEN fault protection (UK)
- Custom cable length and housing colour

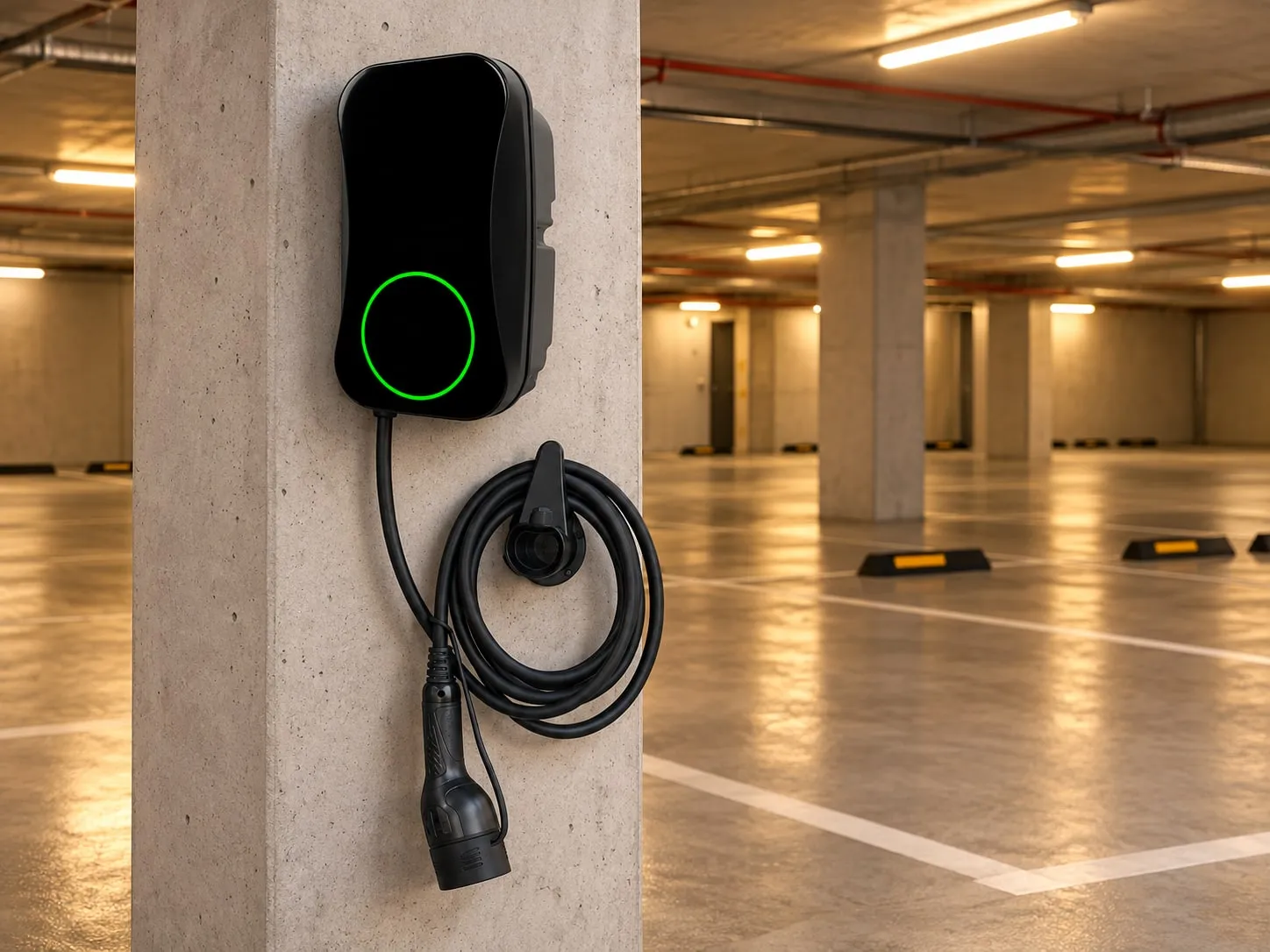

Where it works best
FAQ
Which version do I need for the USA?
The -NA versions: 208–240 V split-phase input with an SAE J1772 cable, in 32 A, 40 A or 48 A.
Can it work with my solar inverter?
Yes. With the CT clamp installed, solar-surplus mode adjusts the current to the power the PV system exports.
Is OCPP included?
Yes. OCPP 1.6J and 2.0.1 are supported for connection to a charge-point management system.
Get a quote for the EVX Series
Tell us the market, power level and quantity. An engineer replies with a model list and price.
