EVL Series
A single-phase 7.4 kW wallbox with a colour screen, an RFID reader and a tethered cable — the straightforward choice for homes and small car parks on single-phase supply.
- 1-phase 32 A
- 7.4 kW1-phase 32 A
- Colour screen
- LCDColour screen
- Card start
- RFIDCard start
- Outdoor rated
- IP65Outdoor rated
Models
- MZ-EVL7-T
Certified to CE and CB, tested by TÜV and SGS; certificate copies for the exact model on request.
Overview
The EVL Series is built around the most common home supply: single-phase 32 A. It delivers up to 7.4 kW and puts everything the user needs on the front — a colour LCD, an RFID reader and the status light.

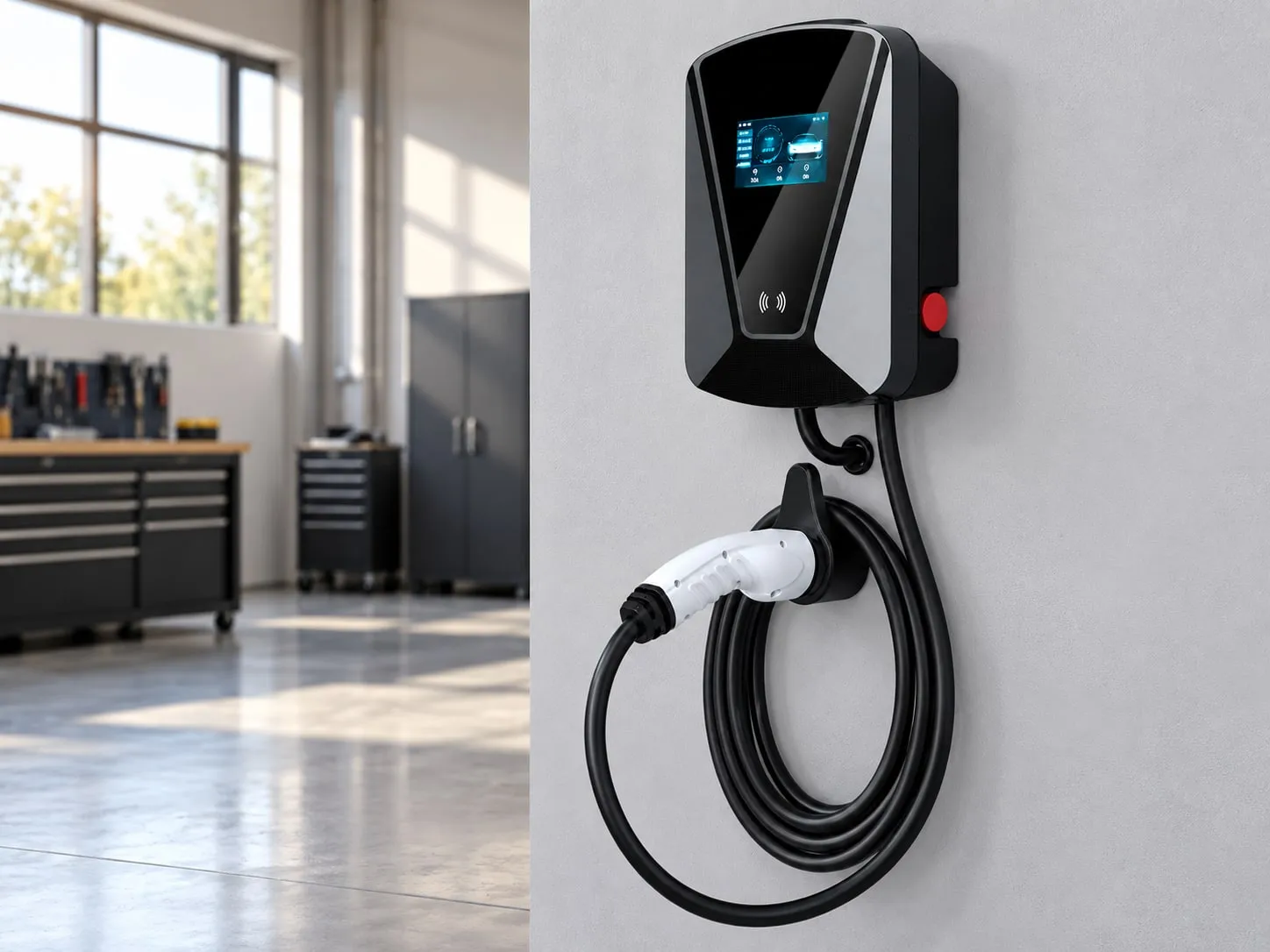

The tethered Type 2 cable hangs on a holster below the unit, and the IP65 housing allows outdoor installation on driveways and in open car parks.
Highlights
- Colour LCD with session data
- RFID card reader on the front
- Tethered Type 2 cable with holster
- Grey side panels for a two-tone look
Best for: Homes and small businesses with a single-phase supply
Specifications
IEC version
Tethered Type 2 cable 5 m · LCD · RFID · IP65
| Model | MZ-EVL7-T |
|---|---|
| Rated power | 7.4 kW |
| Rated current | 32 A (6–32 A adjustable) |
| Recommended breaker | 36 A |
Common specifications
- Input
- 1P+N+PE 220–240 V
- Frequency
- 50/60 Hz
- Fault protection
- 30 mA Type A RCD + 6 mA DC leakage detection (North America: CCID 20)
- Protections
- Over/under-voltage, over-current, over-temperature, surge, ground detection
- Backend protocol
- OCPP 1.6J · OCPP 2.0.1
- Connectivity
- Wi-Fi, Bluetooth; 4G and Ethernet optional
- Start modes
- RFID card, mobile app, plug & charge
- Load management
- Dynamic load balancing with a CT clamp; solar-surplus mode
- Operating temperature
- −25 °C to +55 °C
- Ingress protection
- IP65
- Dimensions (W × H × D)
- 200 × 330 × 122 mm
Figures may change with product updates — the datasheet sent with your quotation is binding.
Engineering
- 01
Everything on the front
Screen, RFID reader and status light — no app needed for daily use.
- 02
Single-phase optimised
The full 7.4 kW from a standard single-phase home supply.
- 03
Ready for operators
OCPP links the unit to billing and remote monitoring.
Installation
- Wall mounting
- Set the current limit to match the supply
Options
- 4G / Ethernet
- PEN fault protection (UK)
- Custom colour
Where it works best
FAQ
Why only 7.4 kW?
It is built for single-phase supplies, where 7.4 kW (32 A) is the maximum. For three-phase homes choose EVX, EVR or Mini.
Can I lock the charger?
Yes. With RFID enabled, only registered cards can start a session.
