EVR Series

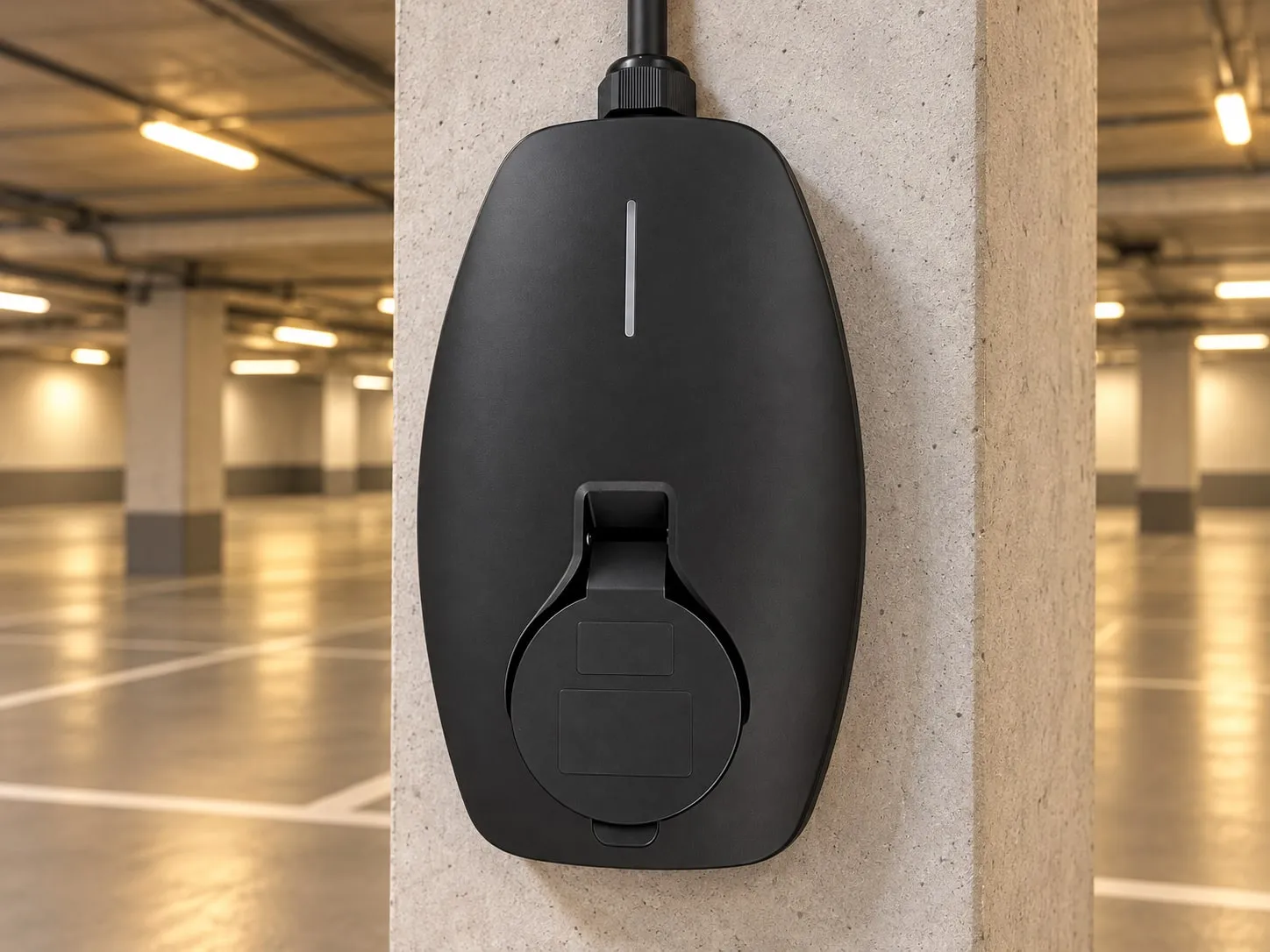

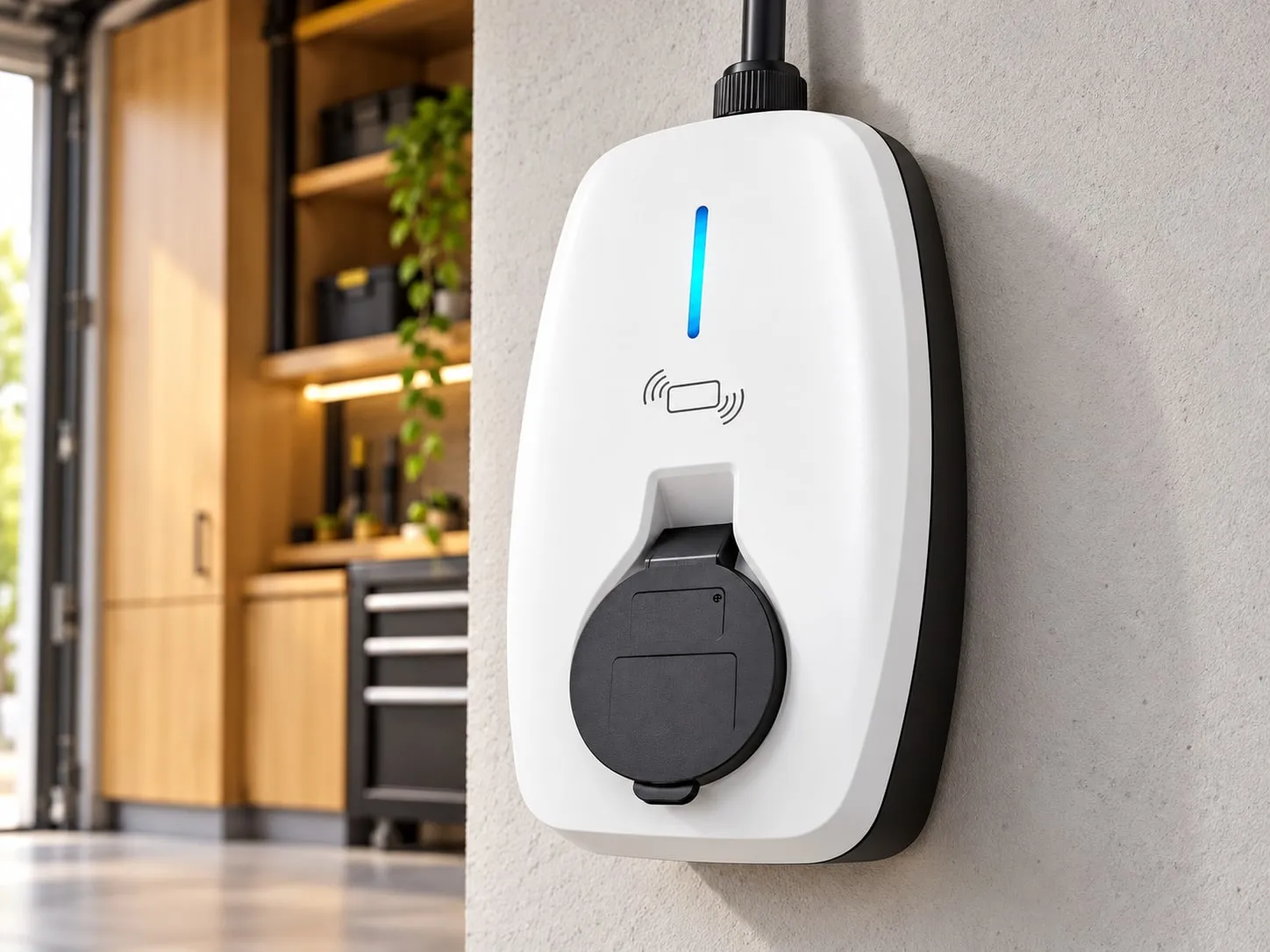

A rounded, soft-edged wallbox in arctic white or graphite black — at home on a façade, in a carport or in a residents’ garage.
- 1-phase or 3-phase
- 7.4–22 kW1-phase or 3-phase
- Arctic white · Graphite black
- 2 coloursArctic white · Graphite black
- Card and app start
- RFIDCard and app start
- Indoor and outdoor
- IP55Indoor and outdoor
Models
- MZ-EVR7-S
- MZ-EVR11-S
- MZ-EVR22-S
Certified to CE and CB, tested by TÜV and SGS; certificate copies for the exact model on request.
Overview
The EVR Series is the design-led wallbox in the MOLZEX range. One rounded housing comes in arctic white or graphite black, so it can match the building instead of standing out.
Under the soft shell it has everything a smart charger needs: a Type 2 socket with cover, an RFID reader, Wi-Fi and Bluetooth, and OCPP for operators.
Highlights
- Two colourways from one housing
- Type 2 socket with flip-up cover
- RFID reader behind the front panel
- Light bar shows the charging state
Best for: Homes, holiday rentals and residential car parks where the charger should blend in
Specifications
IEC versions
Type 2 socket · white or black · IP55
| Model | MZ-EVR7-S | MZ-EVR11-S | MZ-EVR22-S |
|---|---|---|---|
| Rated power | 7.4 kW | 11 kW | 22 kW |
| Phases | 1-phase | 3-phase | 3-phase |
| Rated current | 32 A | 16 A | 32 A |
Common specifications
- Input
- 1P+N+PE 220–240 V or 3P+N+PE 380–415 V
- Frequency
- 50/60 Hz
- Fault protection
- 30 mA Type A RCD + 6 mA DC leakage detection (North America: CCID 20)
- Protections
- Over/under-voltage, over-current, over-temperature, surge, ground detection
- Backend protocol
- OCPP 1.6J · OCPP 2.0.1
- Connectivity
- Wi-Fi, Bluetooth; 4G and Ethernet optional
- Start modes
- RFID card, mobile app, plug & charge
- Load management
- Dynamic load balancing with a CT clamp; solar-surplus mode
- Operating temperature
- −25 °C to +55 °C
- Ingress protection
- IP55
- Colours
- Arctic white, graphite black; custom on request
- Dimensions
- On request
Figures may change with product updates — the datasheet sent with your quotation is binding.
Engineering
- 01
Made to blend in
White disappears on light façades; black suits dark cladding and garages.
- 02
Card or app
RFID for shared parking, the app for private homes.
- 03
Smart and connected
OCPP 1.6J and 2.0.1 plus load balancing for homes with limited supply.
Installation
- Wall mounting
- Commissioning by app
Options
- Custom colour
- 4G / Ethernet
- PEN fault protection (UK)
Where it works best
FAQ
Which colours are available?
Arctic white and graphite black as standard; other colours for OEM orders.
Does it need a three-phase supply?
Only the 11 kW and 22 kW models. The 7.4 kW model runs on single-phase.
Get a quote for the EVR Series
Tell us the market, power level and quantity. An engineer replies with a model list and price.
